Overview

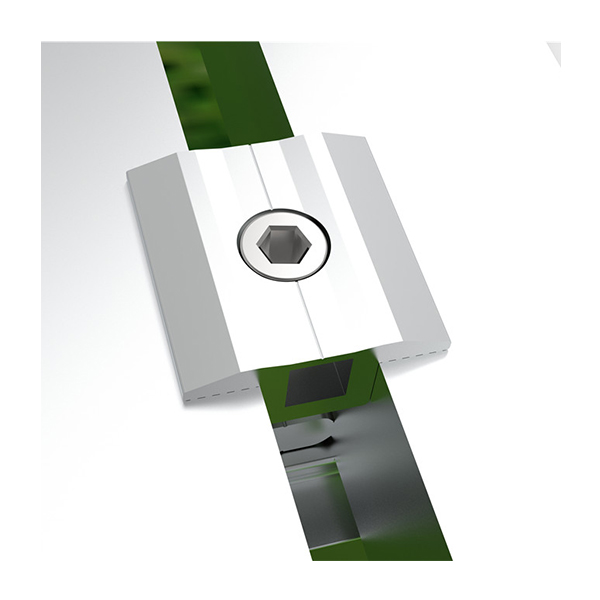

Angels Solar provide solar mid clamps & end clamps for solar mounting structure, which are made of extruded anodized aluminium with 35mm/40mm/45mm/50mm length, and with accurate design, the mid clamp can make the connection between the panel firmly. Aluminium framed panel clamps for fixing panel on the rails.

Angels Solar panel mid clamps &end clamps also welcomed by most of solar installers, solar distributors&solar EPC company, we can provide customized with OEM Service if you need.

Custom Options

  • Size
  • Materials
  • Functionality Requirements
  • Additional options depending on your specific installation conditions
CONTACT US

10 Years Warranty

Small Orders Available

Excellent Adaptability

Quick Installation Guide

Product Features

  • It fits 30mm to 45mm framed panel
  • Significant savings
  • High module compatibility
  • Static reliability
  • Maximum service life

More Details

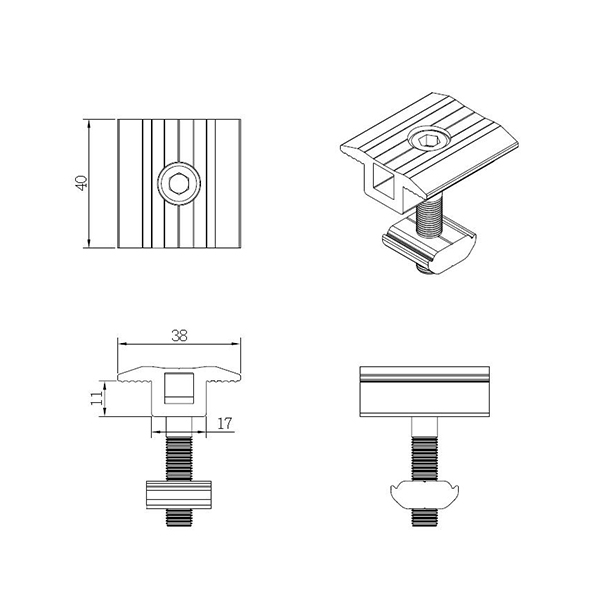

Product Parameters

Application: Solar Panel Frame
Length: 30mm to 45mm framed panel or customizable
Module Orientation: Landscape / portrait
Module Type: Framed
Material: AL6005-T5 & SUS304
Standard: ASCE_7-10, JIS C8955: 2017, EN1090, International Building Code IBC 2009
Mid Solar Clamping

Warranty & Commitment

  • ANGELS SOLAR offers a 10-year warranty for all ANGELS SOLAR solar mounting system products and accessories;
  • ANGELS SOLAR is committed to providing users with qualified products and accessories that are consistent in materials and manufacturing process;
  • This warranty is only valid if the product is properly installed and approved in accordance with the instructions provided. ANGELS SOLAR provides maintenance services or the replacement parts equivalent to the original product for any default product;
  • You’re free to contact us to get all the warranty details.
