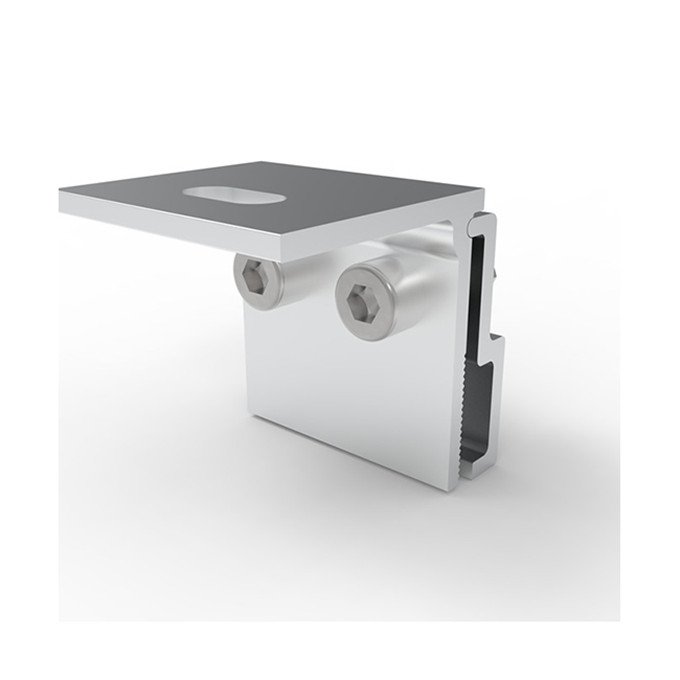

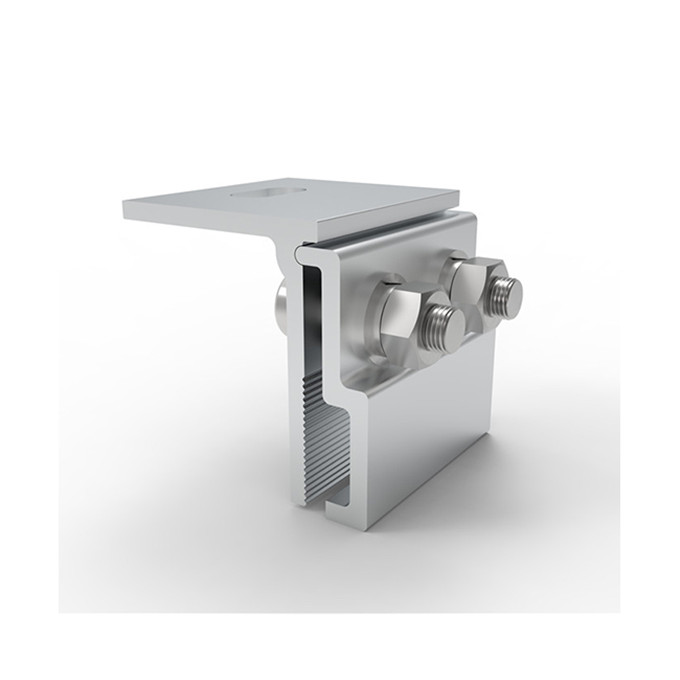

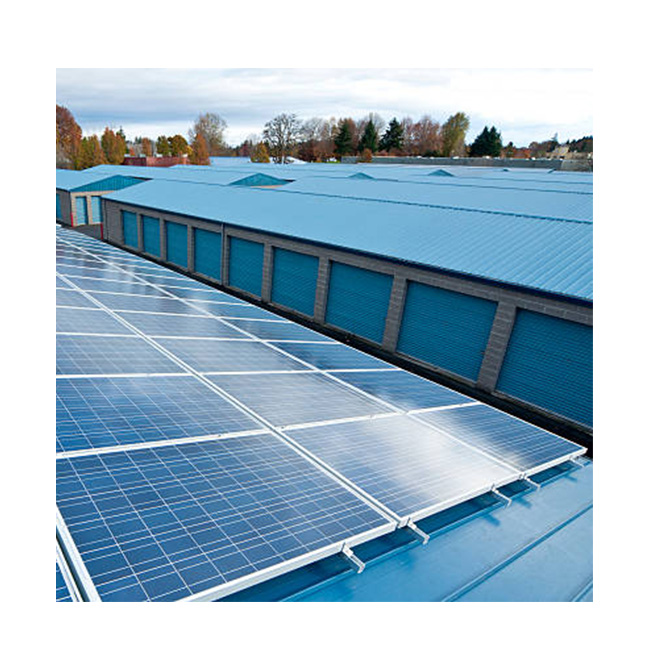

Solar Tin Roof Klip-Lok can be very cost effective for solar panel metal roof sheet installation. Many Factory roofs are built of metal sheets, it’s a very good idea to equip with pv modules on the top. Our Tin Roof Klip-Lok can help installing photovoltaic panels efficiently and save cost. No necessary to pre-drill hole and penetration before installation, easy and quick install directly.
10 Years Warranty
Small Orders Available
Excellent Adaptability
Quick Installation Guide
– Suitable for large scale industrial and commercial metal rooftops;
– Fast mounting, install without pierce of roof surface;
– Al6005-T5 aluminum in material, reduce roof weight loading;
– Anticorrosive with anodized fine finishing;
| Product Type | PV Module Mounts on Metal Rooftop Clamp |
| Material | Aluminium Alloy 6005-T5 + Steel |
| Max Wind Load | 60 m/s (130 mph) |
| Max Snow Load | 1.4 KN/M2 (30 psf) |
| Solar Module Orientation | Portait or Landscape |
| Application | Metal Roofing |
| Installation Site | Tile Roofing 0 °~ 60° |
| Standards | ASCE_7-10, JIS C8955: 2017, EN1090, International Building Code IBC 2009 |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
You’re free to contact us to get all the warranty details.
