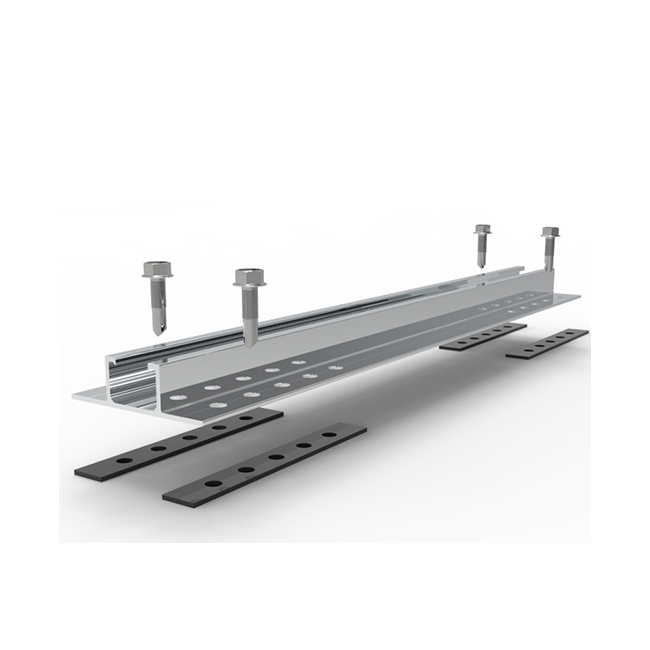

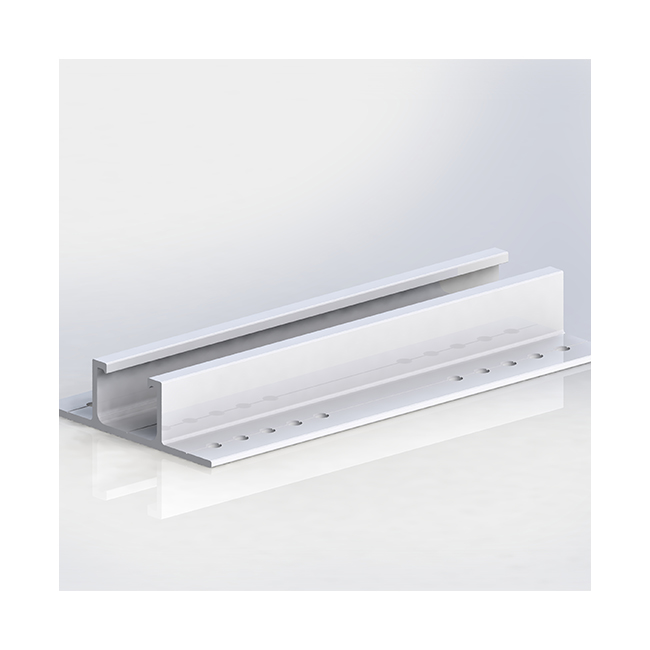

AS Mini Rail Kit Short Railless Roof Mount


AS Mini Rail Kit Trapezoidal Metal Roof Solar Mounting System is designed for solar installation on trapezoidal color steel metal roof. With mini-rail design, the system still delivers firm and stable  fixation between metal roof and solar. As a cost-effective mounting solution, the mini-rail kit greatly reduces overall project cost.

Custom Options

  • Size
  • Materials
  • Functionality Requirements
  • Additional options depending on your specific installation conditions

10 Years Warranty

Small Orders Available

Excellent Adaptability

Quick Installation Guide

Product Features

  • Innovative mini-rail design delivers strong and stable fixation while delivering a cost-effective solution.
  • Simple but firm design.
  • Compatible to most framed and frameless solar panels.
  • Pre-assembled before shipment, saving on-site installation time and labor cost.


More Details

Product Parameters

Material Aluminium, SUS 304 Steel
Max Wind Load 60 m/s (130 mph)
Max Snow Load 1.4 KN/M 2 (30 psf)
Solar Module Orientation Portait or Landscape
Application Tin / Metal Roof Top
Installation Site Tin Trapezoid Metal roofs
Standards ASCE_7-10, JIS C8955: 2017, EN1090, International Building Code IBC 2009
Warranty 10 years
Designed Lifespan 25 years
U Rail Mounting Structures

Warranty & Commitment

  • ANGELS SOLAR offers a 10-year warranty for all ANGELS SOLAR solar mounting system products and accessories;
  • ANGELS SOLAR is committed to providing users with qualified products and accessories that are consistent in materials and manufacturing process;
  • This warranty is only valid if the product is properly installed and approved in accordance with the instructions provided. ANGELS SOLAR provides maintenance services or the replacement parts equivalent to the original product for any default product;
  • You’re free to contact us to get all the warranty details.
