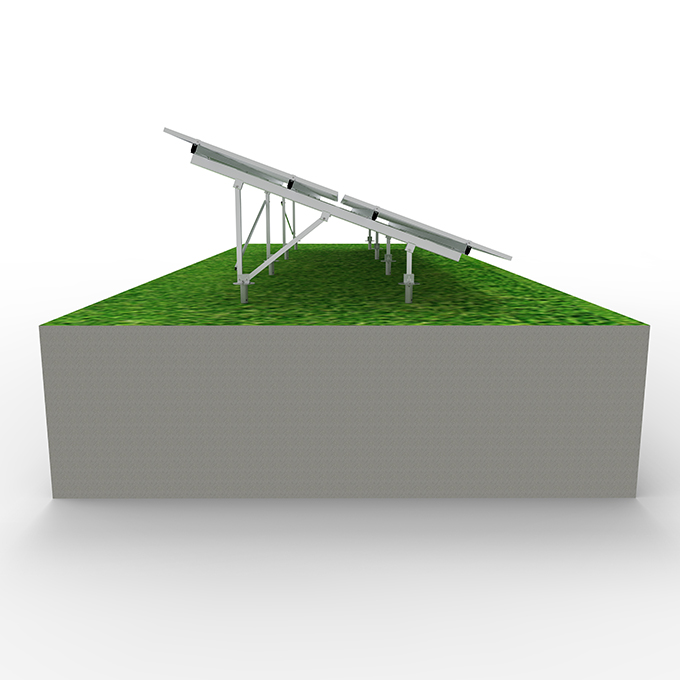

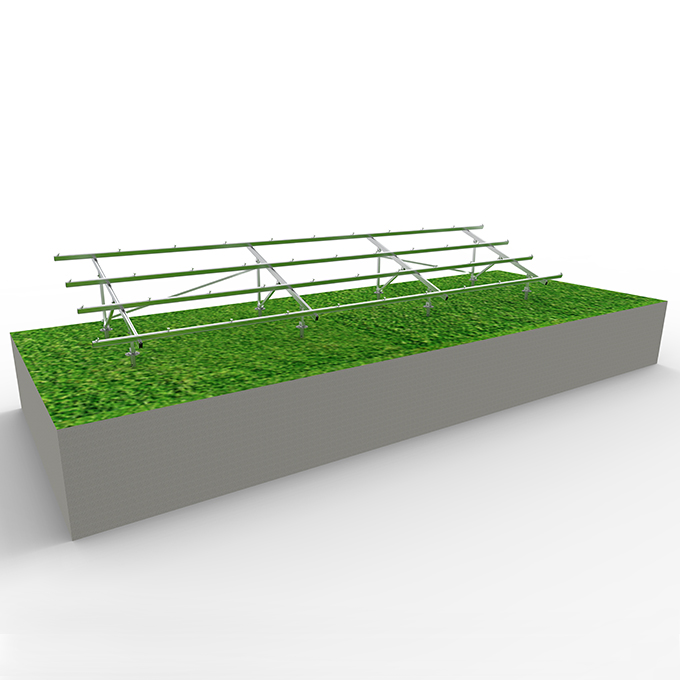

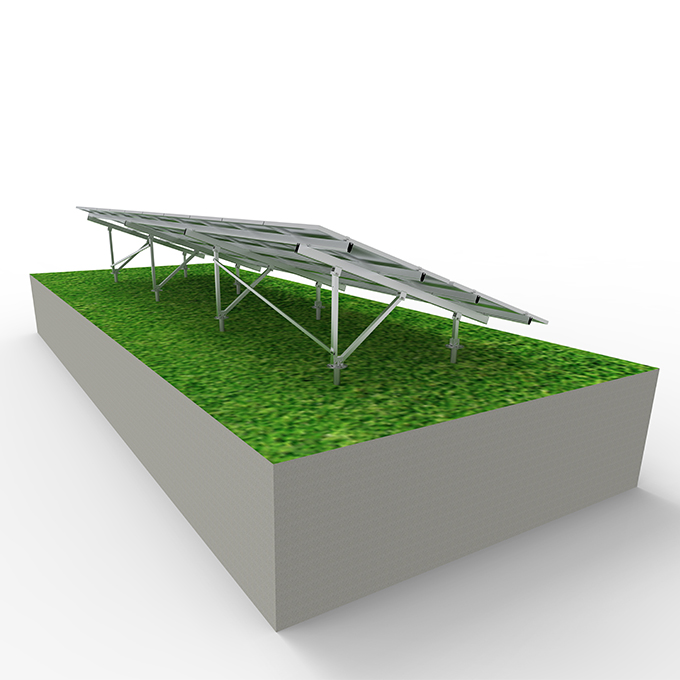

AS AL6005-T5 Solar Ground Mount Structure uses anodized aluminum alloy structure, making the
whole system light-weight, durable, recyclable and highly stron g. Flexiblity in height and angle
adjustment makes the system applicable for different types of la ndforms.
Economical, good stability, suitable for foundation made by concrete and ground screw, high quality, high pre-assembly, easy installation.
10 Years Warranty
Small Orders Available
Excellent Adaptability
Quick Installation Guide
| Application: | Ground |
| Tilt angle of panel: | 0 – 45° |
| Snow: | ≤1.5KN/M2 |
| Recommended wind speed: | 60m/s |
| Module orientation: | Landscape / portrait |
| Distance between foundation: | Depending on load condition |
| Material: | Anodized aluminum 6005 T5, stainless steel 304, Hot-dipped galvanized steel Q235B |
| Standard: | ASCE_7-10, JIS C8955: 2017, EN1090, International Building Code IBC 2009 |
You’re free to contact us to get all the warranty details.
