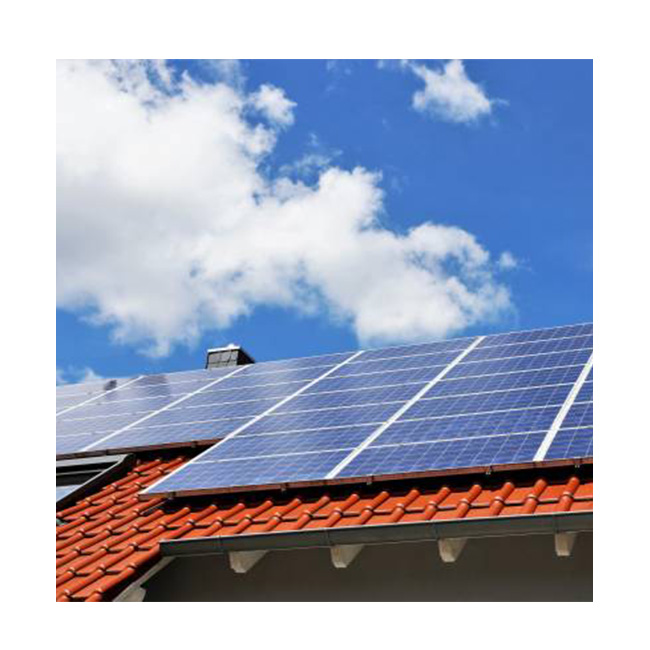

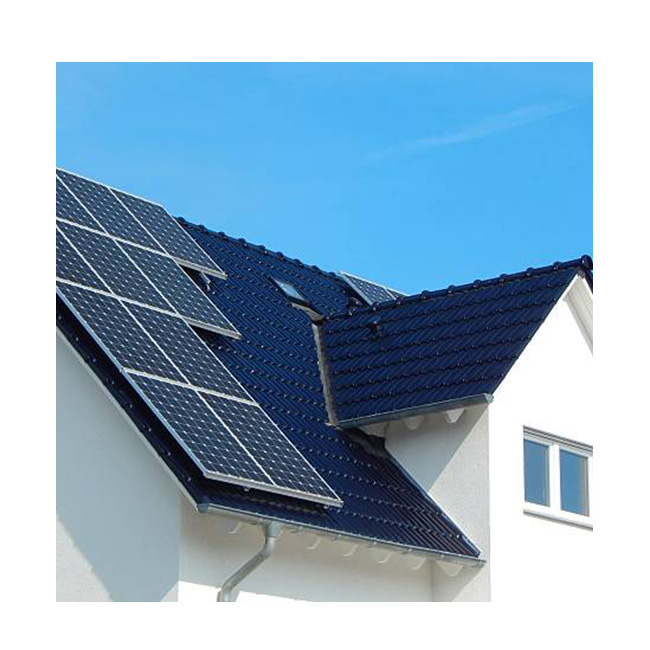

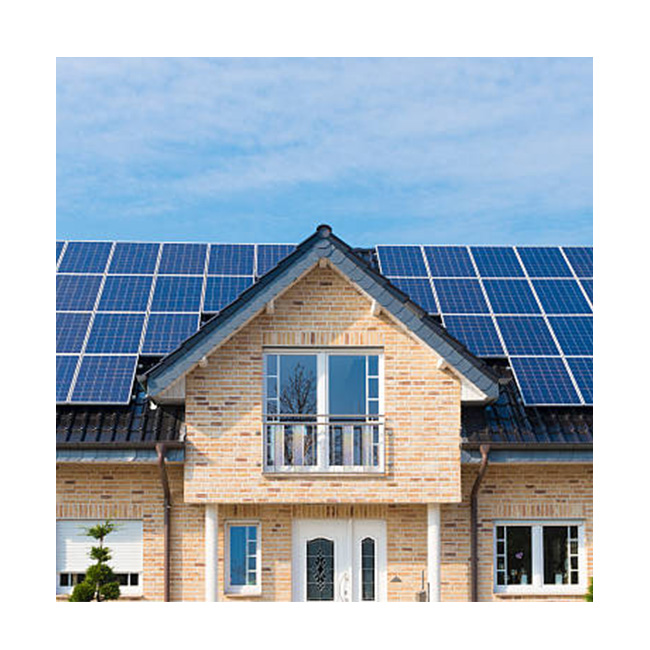

Angels Pitched Roof Racking System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module to flush with the pitched roof. The special extruded aluminum rail, the tilt-in module, the clamp kit and the various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.
10 Years Warranty
Small Orders Available
Excellent Adaptability
Quick Installation Guide

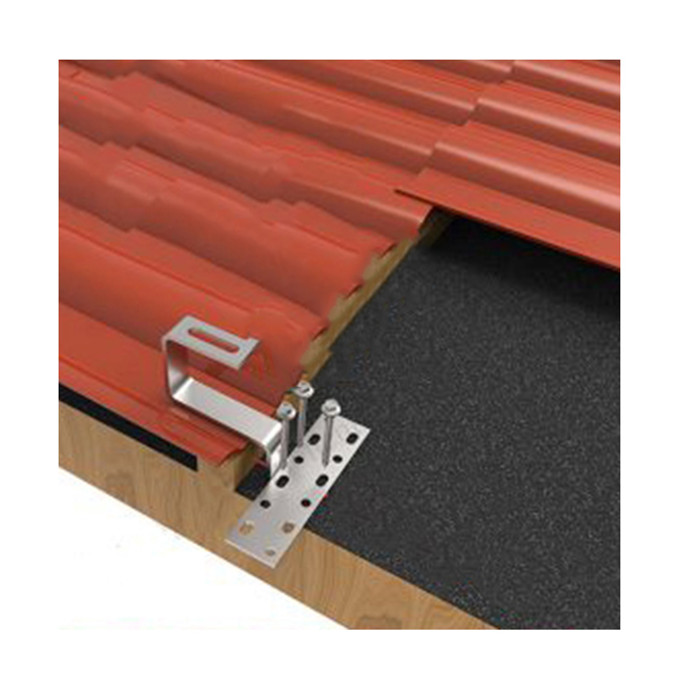

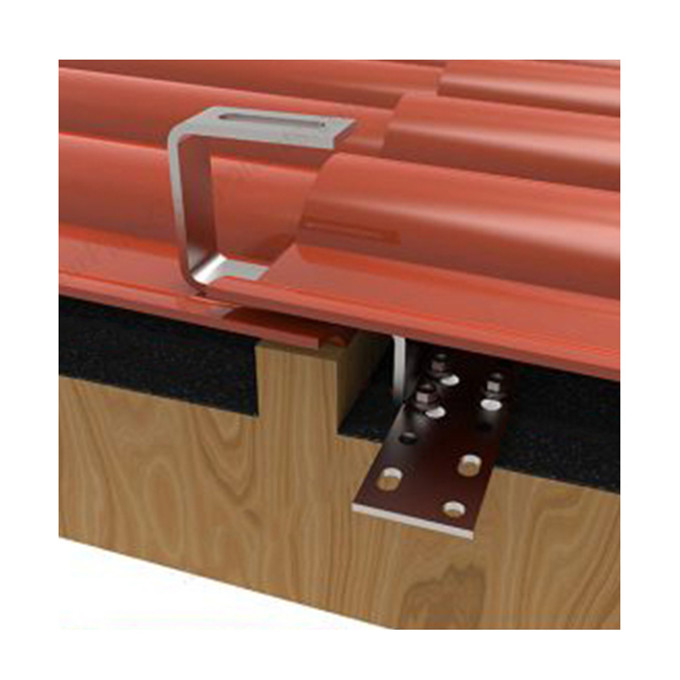

| Install Site | Tiles roof |
| Material | SUS304 Steel |
| Tilt Angle | 10~60 deg |
| Building Height | <20 M |
| Max Wind Speed | 60 m/s (130 mph) |
| Snow Load | 1.4 KN / M2 (30 psf) |
| Standard | ASCE_7-10, JIS C8955: 2017, EN1090, International Building Code IBC 2009 |
| Material | Stainless steel 304 |
| Warranty | Ten years warranty and twenty years service life |
You’re free to contact us to get all the warranty details.
