AS Helical Ground Anchor Screw

Overview

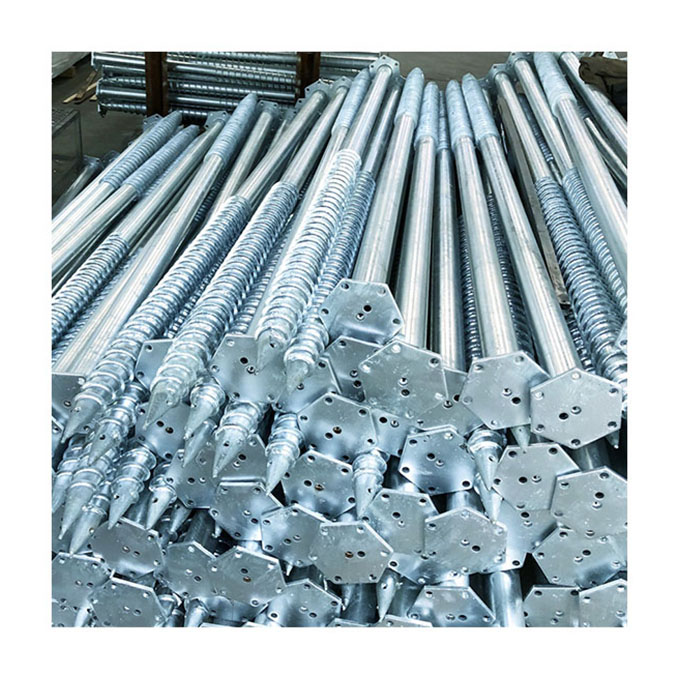

Helical Ground Anchor Screw is widely used in medium to large-scale solar farm installation. Material of Ground Screw Anchor is Q235B steel. The hot-dip galvanized treatment over Ground Anchor Screw surface ensures the ground screw to be anti-corrosive.

Custom Options

  • Size
  • Materials
  • Functionality Requirements
  • Additional options depending on your specific installation conditions
CONTACT US

10 Years Warranty

Small Orders Available

Excellent Adaptability

Quick Installation Guide

Product Features

  • Standard length (1200mm to 3000mm) and customized length.
  • Strong load bearing capacity high stability and high strength.
  • Highly compatible for different terrain.
  • Highly precise on-site piling positioning.
  • Easy to install, no on-site welding needed.

Accessories

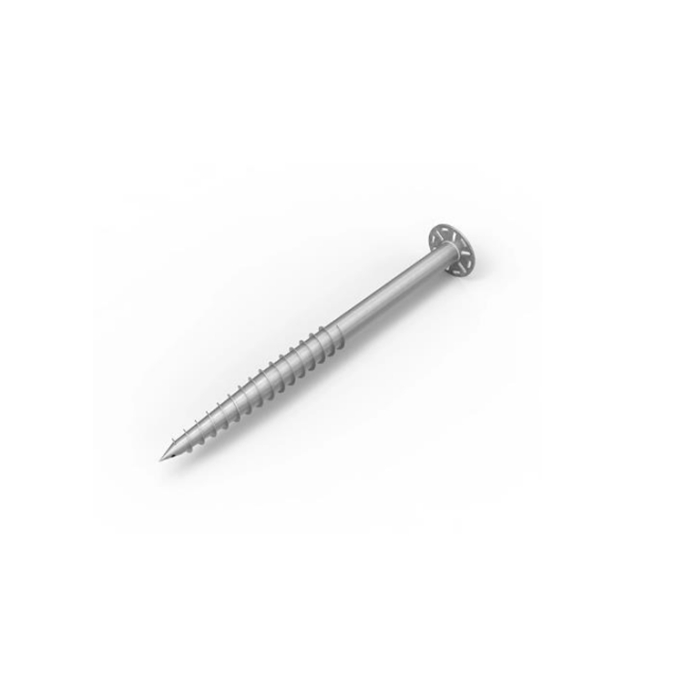

Solar Mounting Component Ground Screw

More Details

Product Parameters

Pipe Diameter
(mm)		 Thickness
(mm)		 Flange
Diameter
(mm)		 Length
(mm)		 Material
76 3.0-3.5 200 or
customized		 1200
1600
1800
2000
2500
3000		 Hot-dip
Galvanized
Steel (≥80μm )

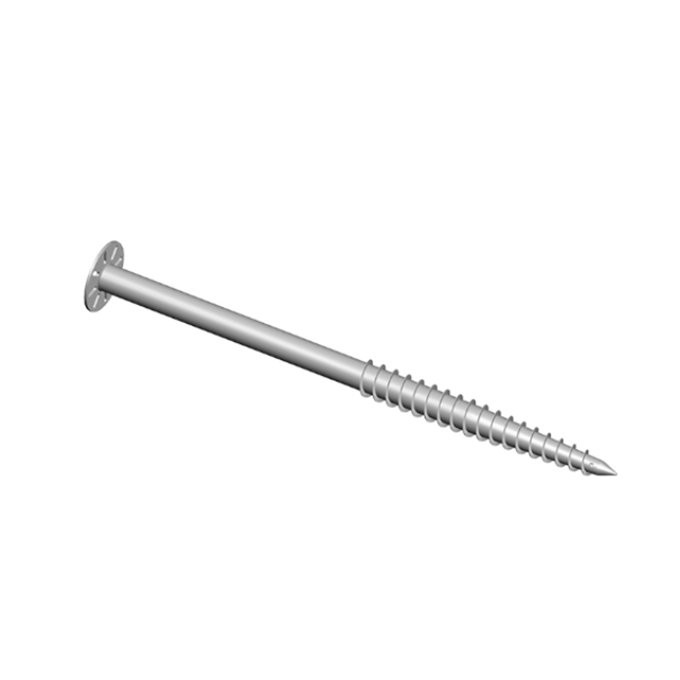

Helix Ground Anchors
Spiral Ground Anchor

Warranty & Commitment

  • ANGELS SOLAR offers a 10-year warranty for all ANGELS SOLAR solar mounting system products and accessories；
  • ANGELS SOLAR is committed to providing users with qualified products and accessories that are consistent in materials and manufacturing process;
  • This warranty is only valid if the product is properly installed and approved in accordance with the instructions provided. ANGELS SOLAR provides maintenance services or the replacement parts equivalent to the original product for any default product;

  • You’re free to contact us to get all the warranty details.
